Information That User Can Provide for M1 Troubleshooting
Updated Jul 12,2024
Updated Jul 12,2024

Here is some information that you can help us troubleshoot.



#1 Software Version

You can follow the instructions below to find out your software version:

  1. Within xTool Creative Space 2.0 (XCS), navigate to the top left corner and click the X icon to locate “settings”.
  2. In the “xTool Creative Space settings”, locate the “About XCS” tab where you may find your current software version.

The current software version is detailed as below.



#2 Firmware Version

You can follow the instructions below to find your firmware version:

  1. Click the gear icon on the top right corner.
  2. Go to the "Basic info" section and scroll down the list.

The current software version is on the right side, as shown below.



#3 Product SN

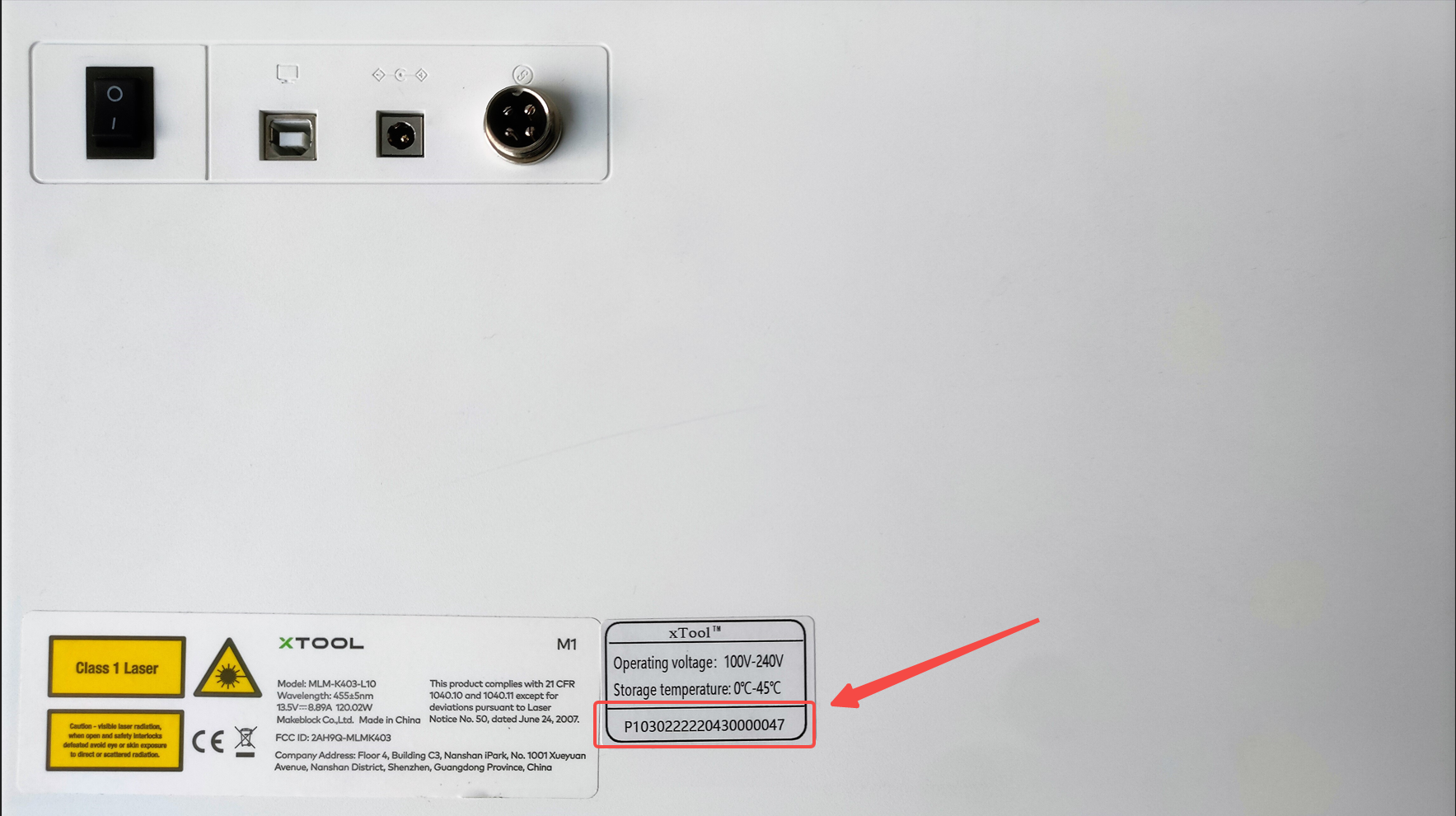

You can see the product SN on the back of the machine.

设备SN (1).png



#3 The Firmware Version



#4 Work Log

You may export the work log in the following way:

  1. Click the gear icon on the top right corner.
  2. Go to the "Working info" section.
  3. Click the "Export" button on the right side to save the zipped work log. The file will be named [xcs_m1_log.gz].

image - 2023-08-22T102658.418.png



#5 XCS Debug Data

You can find the debug record in the following way:

  1. Click the X icon on the top left corner.
  2. Go to the "File Setting" section.
  3. Choose "debug" in the "log level" setting.
  4. Click Open and turn to the folder of debug record.

You will see the debug files exported to your computer storage.

Please send us the debug files from the day before to the day after the issue occurs.



#6 Computer System Information

You can see your computer system information by referring to the following instructions.

Windows:

Press Win+R keys to access the run command window.

image - 2023-08-22T102903.444.png

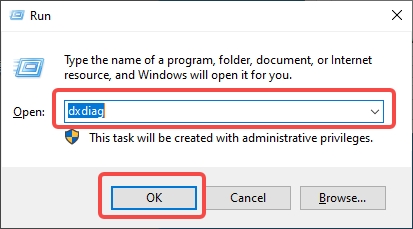

Enter 'dxdiag' in the search field and click OK.

img_v2_6b2a05c7-e715-436b-bd66-40a5930fb1cg (2).jpg

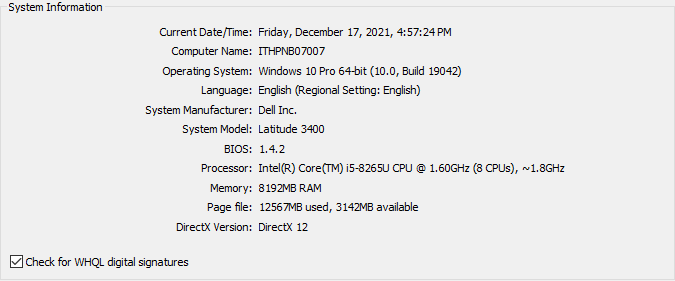

You will see the system information in the pop-up window.

image - 2023-08-22T103023.553.png

Mac:

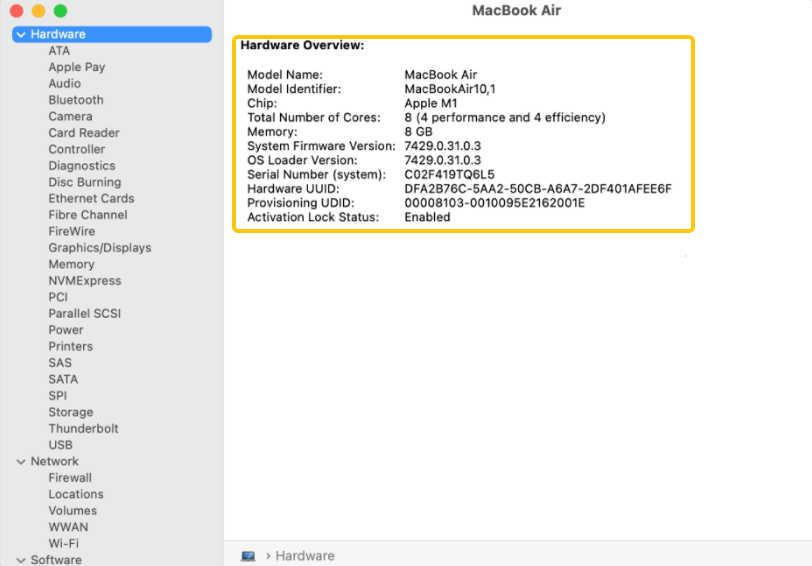

Choose Apple menu > System Settings, then click General in the sidebar. (You may need to scroll down.)

Click About on the right, then click System Report.

image - 2023-08-22T103114.573.png



#7 Xcs Processing File

You may export the XCS processing file in the following way:

  1. Click the X icon on the top left corner.
  2. Navigate to the “File” section and select "Save as ..." to save the XCS processing file.
  3. The processing file contains processing information such as mode and parameters.

image - 2023-08-22T103907.688.png



#8 Original Image for Processing

You may need to provide the image that you are trying to process. It can be a vector image in SVG or dxf formats, or a bitmap image in jpg, png, or other formats.

image - 2023-08-22T104450.063.png



#9 Video of Operation and Error

You may need to provide a video to demonstrate all your operations and failure phenomenon. You can take a photo of the failure if it is hard to see. If the issue can hardly reoccur or happens randomly, please provide more details of your operation and descriptions of it.
