How to Deal with the Garbled Text on LightBurn for xTool D1 Pro
Updated Sep 21,2023
Updated Sep 21,2023
This article applies to:
D1 Pro with all laser modules.
Issue Description

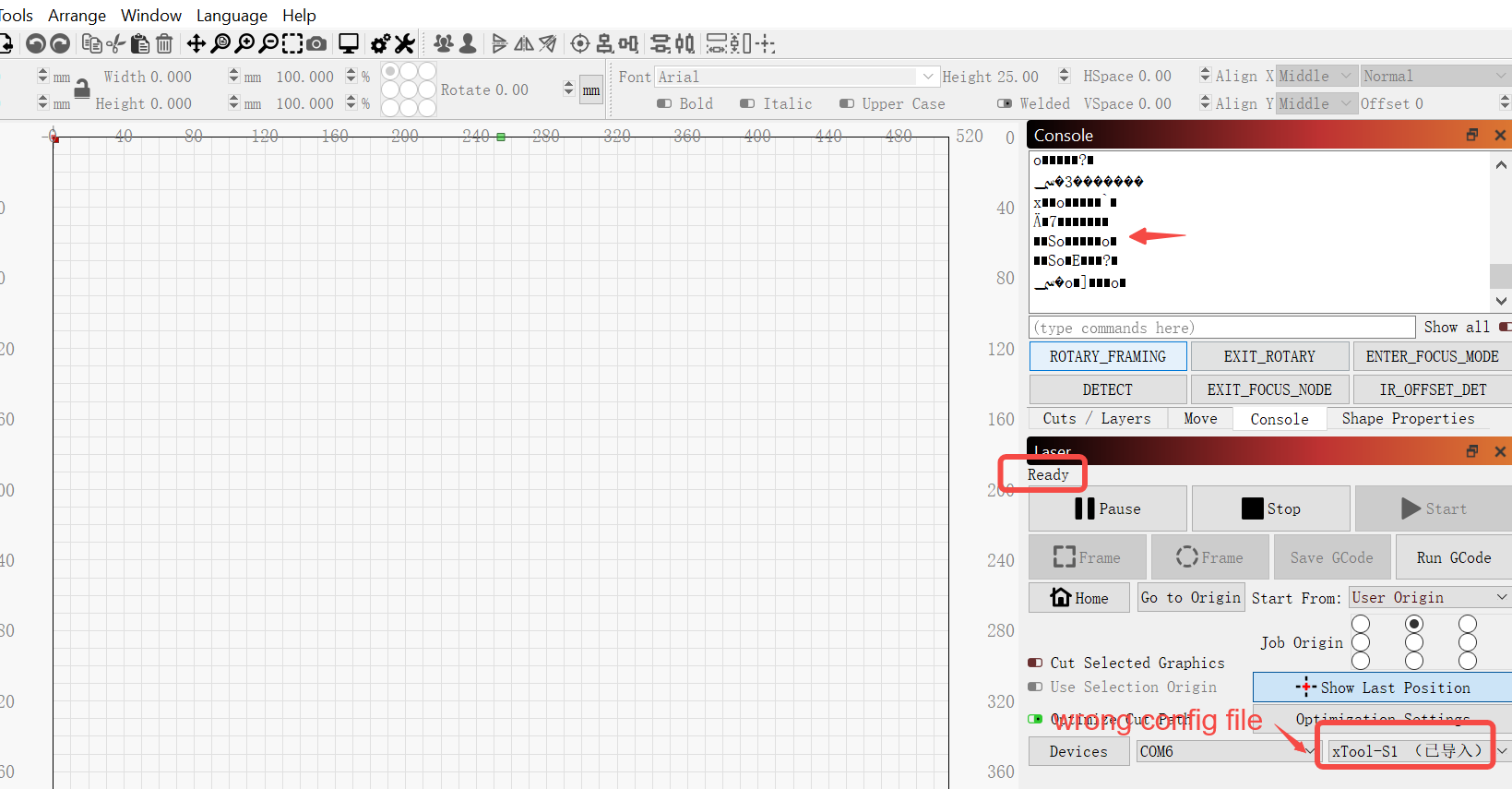

When you use LightBurn to operate the machine, the garbled text appears in the console interface, as shown below. Please follow the instructions below to troubleshoot.
Solution

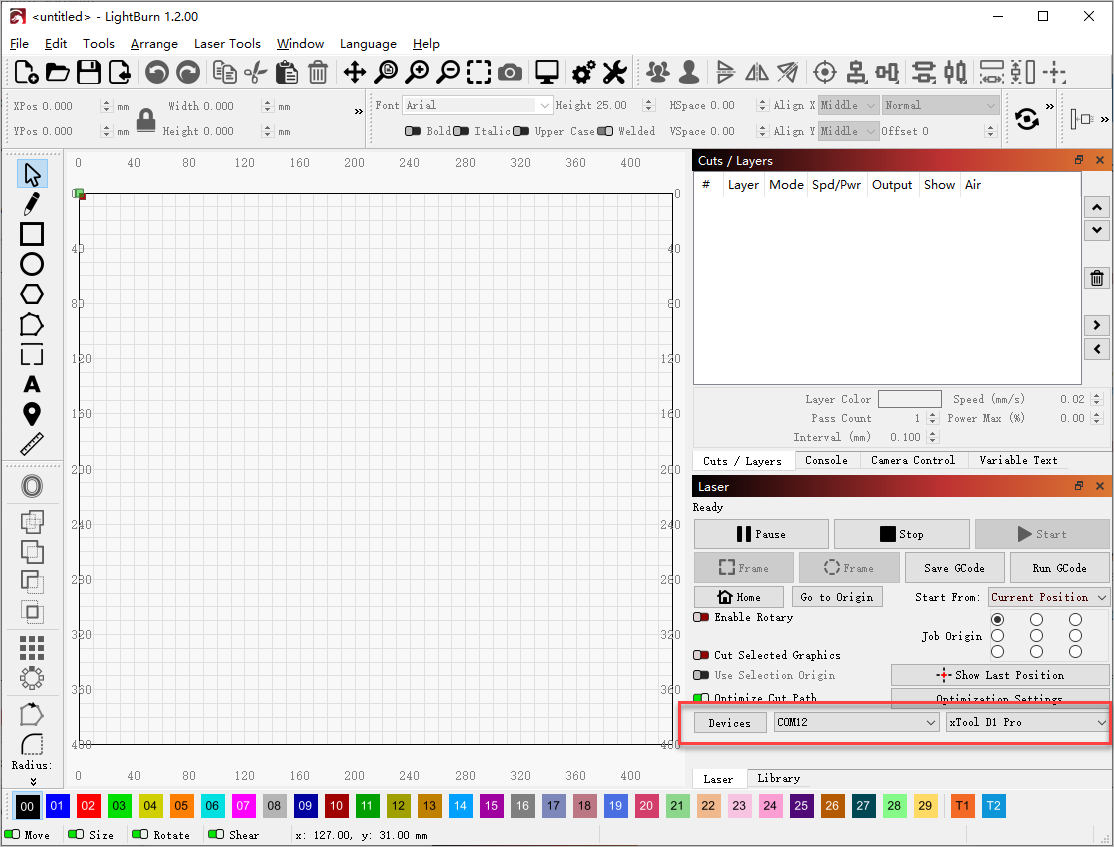

- Please check if the configuration file in the lower right corner is correct.
- If not, please download the correct configuration again.
- For D1 Pro: xTool-D1ProV3.lbdev
- Open LightBurn, click Devices on the Laser
Make sure that you start to configure xTool D1 Pro in this way instead of choosing Import Prefs from the menu. If you choose Import Prefs, the original configuration is overridden.
- Click Import to import the file xTool-D1ProV3.lbdev.
- The following device information is displayed after the file is successfully imported.
If None of the Above Works
If you have followed the instructions above and the issue is still not resolved, please read the article in the link below, collect the troubleshooting steps you have taken, and contact xTool tech support for further advice.
