【Comparison】xTool D1 vs Other Brands
Updated Jul 25,2023
Updated Jul 25,2023
【Comparison】xTool D1 vs. Other Brands
 |  |  |  | |

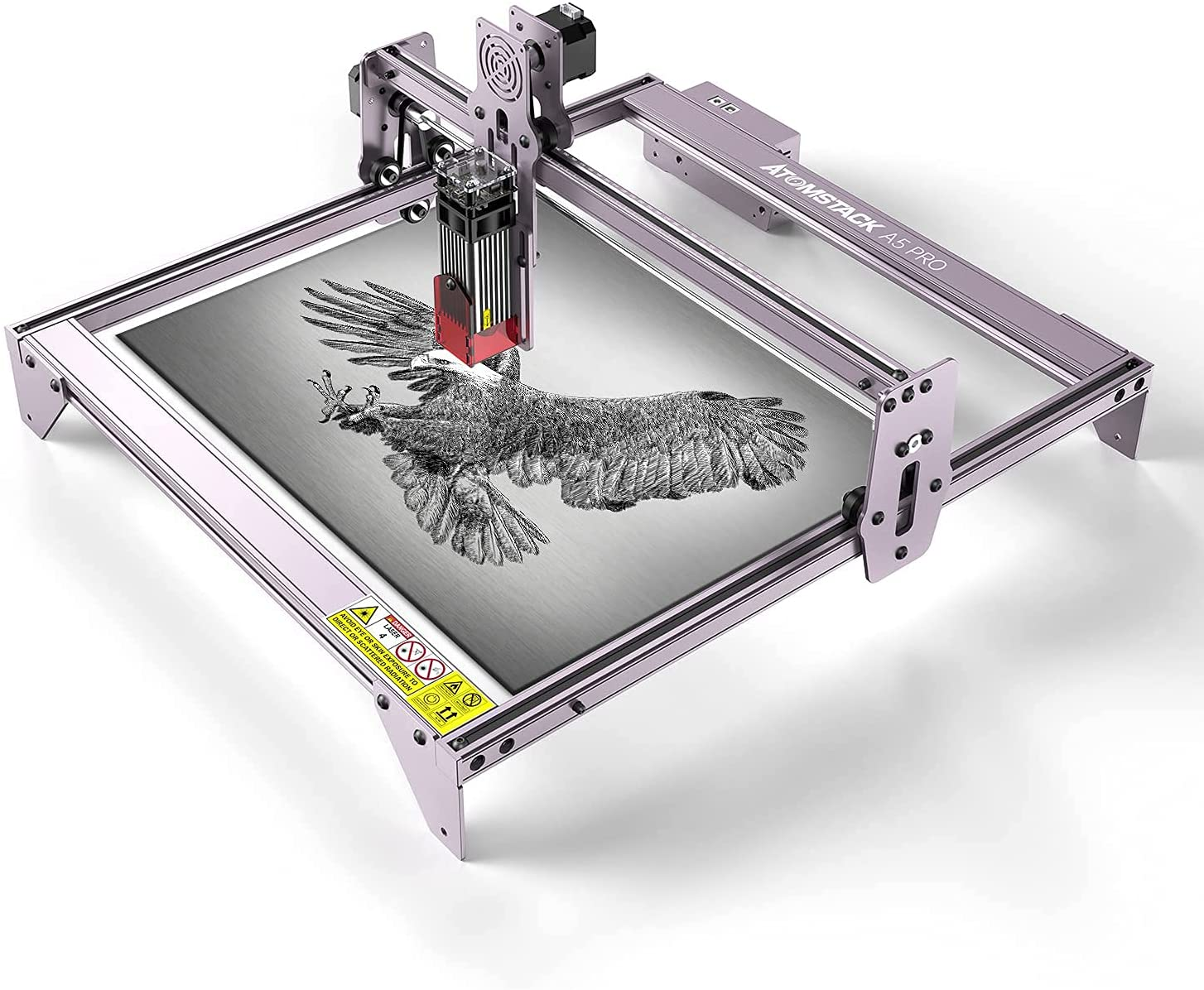

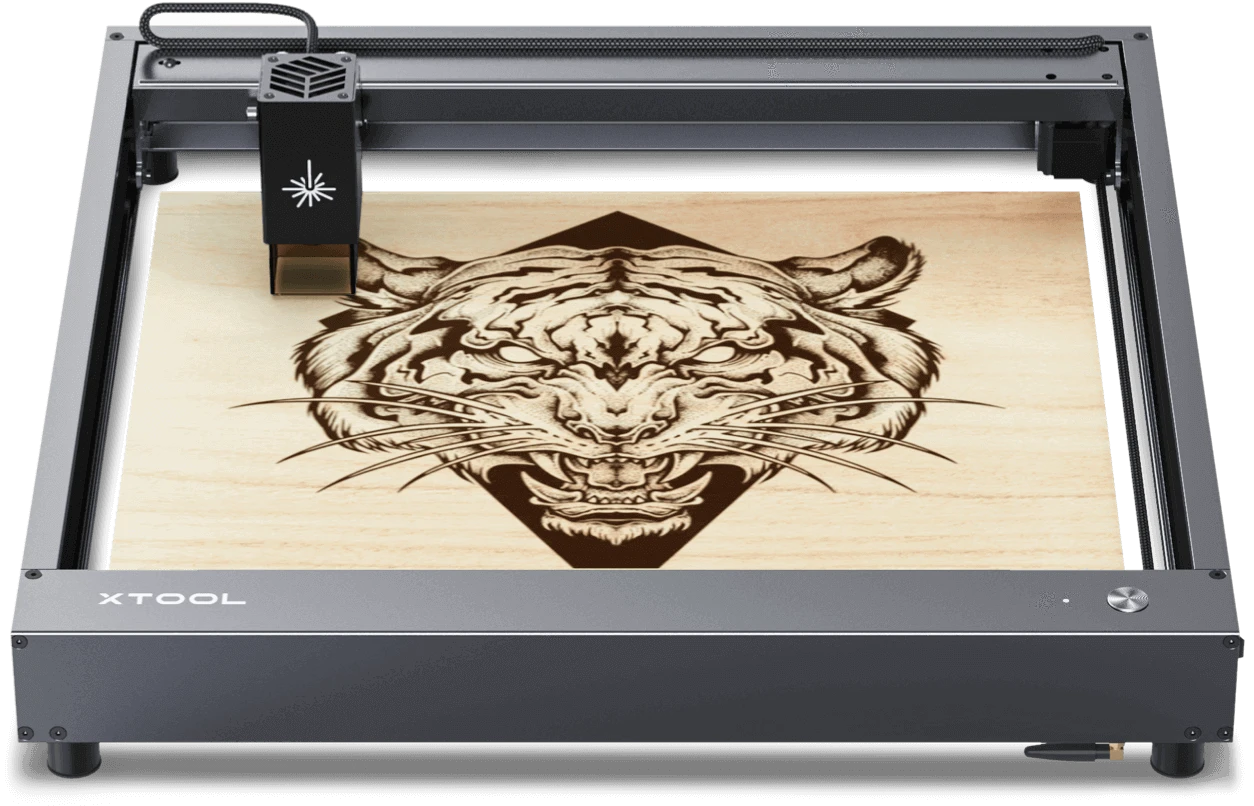

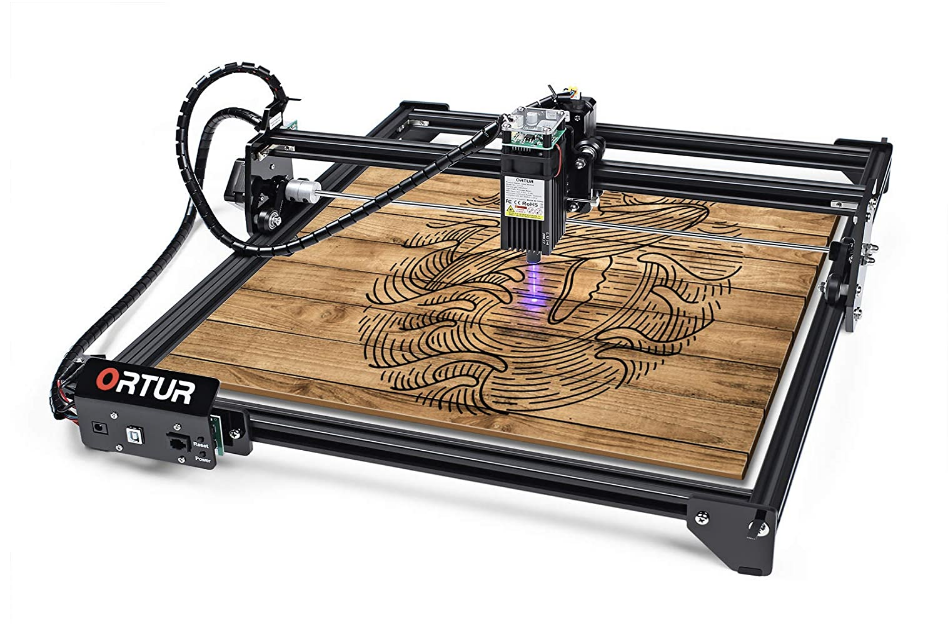

| xTool D1 | ORTUR Laser Master 2 | ORTUR Laser Master 2 Pro | A5 Laser Engraver Pro | |
| Max speed | 10000mm/min | 3000mm/min | 10000mm/min | 3000mm/min |
| Motion structure design | Steel Wheel + Steel Shaft | Plastic Wheel + Aluminium Alloy Shaft | Plastic Wheel + Aluminium Alloy Shaft | Plastic Wheel + Aluminium Alloy Shaft |
| Laser Electic Power | 25W or 40W | 20W | 20W | 20W |
| Laser Optical Power | 5.5W or 10W | 5W | 5W | 5W |
| Infrared positioning | ✔️ | ✘ | ✘ | ✘ |
| Laser Spot | Compressed spot 0.08*0.08mm | Rectangle (0.23x0.23mm) | Rectangle (0.08x0.15mm) | Rectangle (0.3x0.5mm) |
| Working Area | 432*406mm | 410x390mm | 400x400mm | 410x400mm |
| Cylinder Engraving | ✔️ | ✔️ | ✔️ | ✔️ |
| User Instructions | Indicator light + power switch + emergency stop button | ✘ | emergency stop button | ✘ |
| Smartphone Control | ✘ | ✘ | ✘ | ✘ |
| Control software | LightBurn /XCS
| LightBurn /LaserGRBL
| LightBurn /LaserGRBL
| LightBurn /LaserGRBL
|
| Offline Control | ✔️ | ✘ | ✘ | ✘ |
| Connection | WiFi/USB | USB | USB | USB |
| Cut 6mm Wood in 1 Pass | ✔️ | ✘ | ✘ | ✘ |
| Suitable Material | directly engrave smooth stainless steel, metal, and ceramics | ✘ | ✘ | ✘ |
